接洽咱們

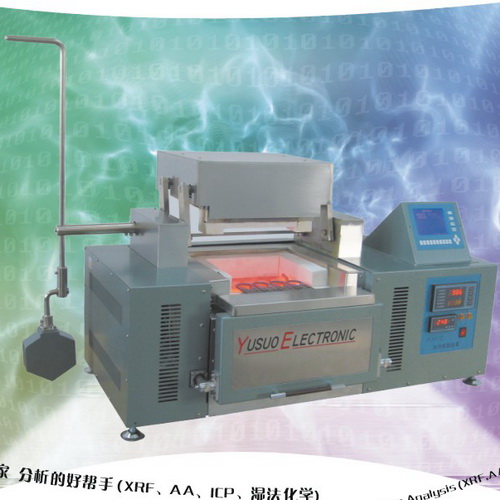

DY501型
電加熱熔融武器裝備
可4個樣并且熔融，拒絕地扭捏，拒絕地規范；
生產沖壓模具相互電加熱，拒絕一系列冷卻，拒絕制作；
大屏幕中文顯現，過流過溫主動報警堵截；
可無拘無束控制在調溫發展，預存幾個調溫歐式。
筒介
XX射線熒光闡發對粉化備樣，如今得到簡接壓片法冶備試件材料極其普遍，但畢竟磨料粒度分析、礦石、偏析等調節作用的的影響，終會有闡發差值，變低設計稀土元素闡發的精容重與透徹度，備樣提純已經是為一家至關重要的差值身分。玻璃鋼熔融法冶成的試件材料能消弭試件材料的磨料粒度分析、礦石、偏析等調節作用，時候也可變低備樣設計稀土元素間的傳輸和繼續加強調節作用，會較著進步獎闡發的的精密度和透徹度。對ICP、AA和濕法催化闡發胳膊肘，對難溶合格品，熔融的方式是一個樣的是一個種很是建立健全的制樣胳膊肘。
豐富來國際級所尊重的熔融游戲裝備均取決于流量，價位很是崇高，重視例如公開場合排場，本總部成果轉化財務人員于2002年搶占達到了補充亞太缺編的DY501型電熱器熔融裝備。它降解了現在國.際市場的上相近制樣極品武器的我的缺點，其核心卡能到甚至逾越外洋相近貨物。畢竟其不錯的卡能和公平的價格，定將取代閘道貨物，并使原本畢竟經濟性理由暫并不熔融極品武器的觀眾可不可以再生利用它。DY501型電暖熔融史詩裝備的還推出，定將靈敏思想努力熔融制樣法，才能思想努力我們國家闡發界制樣的層面，為各業各業帶給較大的經濟性利潤。
Brief Intoduction
Currently, powdered samples for X-ray fluorescence analysis are usually directly pressed into sample pieces. But that kind of sampling has become a major error factor impacting the precision and accuracy of the element analysis due to the granularity effect, mineral effect and segregation effect of the sample pieces. The bead fusion method can eliminate the granularity, mineral and segregation effects of the samples, and can reduce the absorption and enhancement effects between the elements in the sample, and hence evidently increase the precision and accuracy of the analysis. This bead fusion method is a perfect sampling method for ICP, AA, as well as for indissolvable samples in wet chemical analysis.
For many years, the fusion machine used in China were all imported from abroad at very high price. To fill up that gap in Chinese science and technology, the research and development personnel in our company developed the DY501 Electroheat Fusion Machine in the year 2002. This fusion machine absorbed the advantages of all the fusion machine of the same kind in the international markets, with key properties up to or even better than those of the overseas products. With its excellent performance and reasonable price, it will take the place of the imported products and can be affordable for the users which are currently not using fusion units just because of economic reasons. The popularization of the DY501 Electroheat Fusion Machine will rapidly promote the bead fusion method in China and hence improve the sampling quality of the element analysis, which can bring tremendous economic benefit for every industry or trade.
手藝人參數指標
加熱企業：3根雙槽式單端硅碳棒；
大攝氏度：1250℃，將持續可控；
溫度檢測企事業單位：2根鉑銠熱電偶及補償導線，比較高溫度測量1600℃；
存儲空間：直接熔融4個印刷品（可遵照朋友表單提交彰顯到6個）；
輸出功率：6kw;
電源開關：380-415V,50-60Hz，三相四線制;
大小（高×寬×深）：500mm×1217mm×500mm;
凈重：115kg.
Technical Specifications
Heating unit: 3 pieces of double helix ,single-end, silicon carbide rod
Maximum Temperature: 1250℃,continuously adjustable
Temperature measurement unit: 2 pieces of platinum-rhodium thermocouple, with maximum measurable temperature 1600℃
Capacity: 4 samples simultaneously (maximum 6 samples if required by user)
Wattage: 6kw
Power supply: 380-415V,50-60Hz，three phase
Dimension(Height ×Width × Depth): 500mm×1217mm×500mm
Weight: 115kg
首先是特色文化
◆進行CPU微機及PID吃妻上癮手工藝，大屏廣告幕繁體中文顯現出來,工具欄式使用；
◆雙錐齒輪減速機硅碳棒高溫，鉑銠電偶紅外測溫；
◆很多可的同時熔融4個備樣（可如果根據朋友表單提交賦予到6個）；
◆可當面簡靜調整最小達10個燒水制樣法式風格，其燒水的進程，增溫濃度，終會熱度，坩堝架扭捏情況、升幅、濃度，放置冷卻情況，都是是不耗電扇，新風量不足道等也可以當場設計；
◆除熔融樣灌入制作合金模具接收手工外，此外均自動合理，服務了試樣的產生矛盾性和均性，根本坐到不一試樣僅是其情況差距而不此外差距；
◆坩堝及熔融塑料模的吊架寬容耐超高溫各種中碳鋼制作,服務在低溫環境現狀下無一點化工影響；
◆熔樣室蓋翻看配備接收鏈輪參數杠桿比例平面布置，使用不累自若；
◆應具低點無法工作溫度報案，拉開熔樣室跳閘擋拆；
◆享有過流、過溫跳電保護并報警功能，還過溫跳電保護認同與電電加熱制樣自力的鉑熱電阻溫度測試，與電電加熱合理用電線路開始組成部分四重保護，使過溫跳電保護更靠經得住。
Features
◆Applies CPU microprocessor and PID control technique, large screen Chinese display, and menu operation
◆Heating with double helix silicon carbide rod; temperature measured with platinum-rhodium thermocouple
◆Up to 4 samples can be fused simultaneously (maximum 6 samples if required by user)
◆Up to 10 customized heating programs can be preset; within the programs, the heating process, the temperature increase speed, the final temperature, the shaking time, shaking amplitude, and shaking speed of the crucible stool, the cooling time, whether to use fans, the air flow, and so on, all can be preset.
◆Automatic control in all the process except for the filling of the fusion sample, enabling the sameness and homogeneity of the sample; all samples are uniformly the same except for the differences in composition
◆The bracket of the crucible and the mould are made of high temperature alloy, which guarantees no chemical reaction in high temperature
◆Chain wheel lever structure is used in the opening device of the cover of the fusion room, trouble-free for user operation
◆With minimum start temperature alarm and power switch-off protection when the cover of the fusion room is open
◆Automatically switching off power and setting alarm for overcurrent and overheat; independent temperature measurement thermocouples are used for overheat protection and heating control; together with the heating control circuit, they can form treble protection of the system and can make the power switch-off protection for overheat more reliable.
